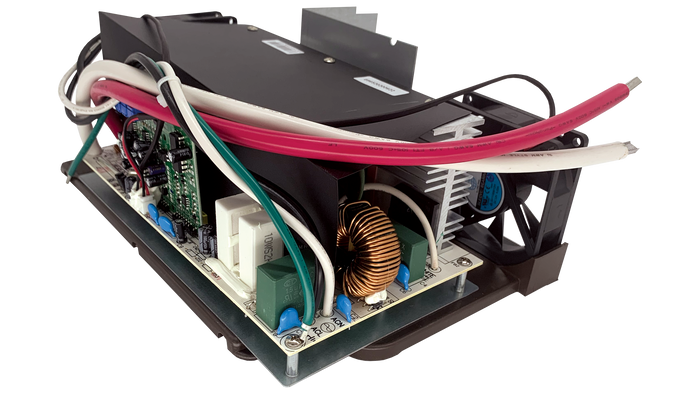

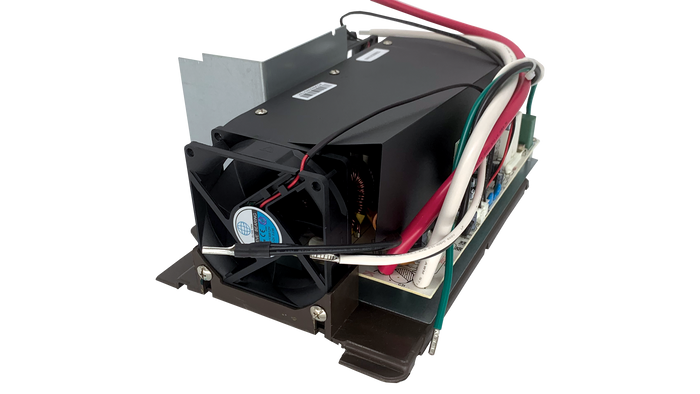

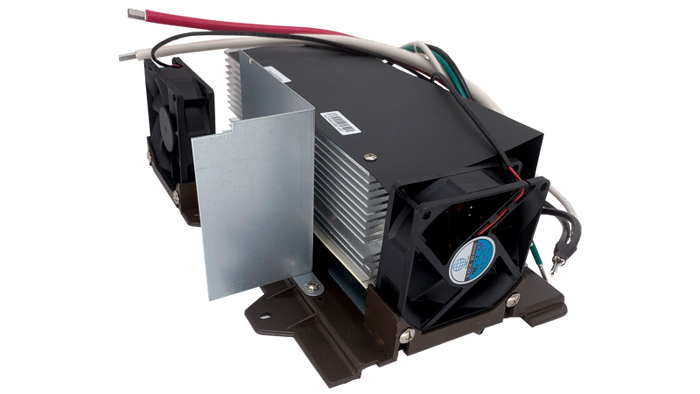

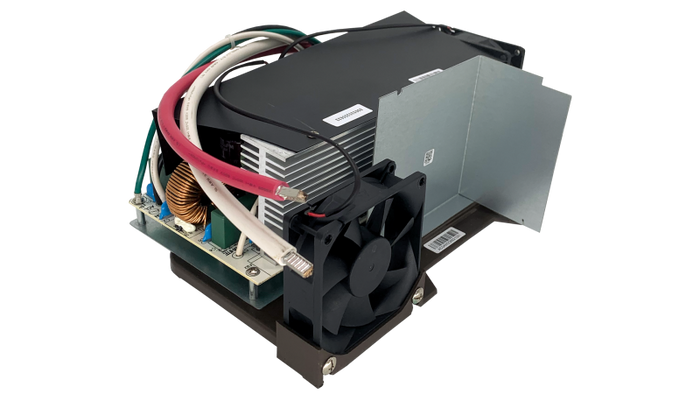

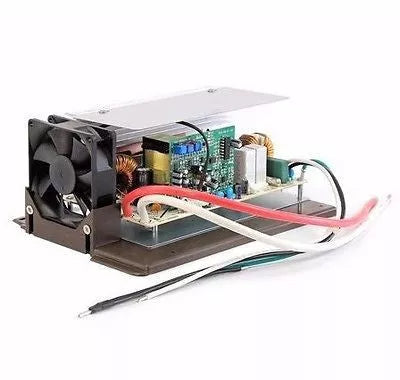

WFCO | Main Board Assembly | WF-8965-AD-MBA | 65 Amp
WFCO | Main Board Assembly | WF-8965-AD-MBA | 65 Amp
WF-8965-AD-MBA Main Board Assembly is a quick, easy replacement part for all existing WF-8965 power centers. Including the industry exclusive, Patent Pending Auto-Detect technology, the WF-8965-AD-MBA will recognize lithium-Ion and lead-acid battery chemistries and adjust the charging profile to match the battery type.
No more buttons. No more switches. An accurately charged battery gives RV owners peace of mind. Eliminating the risk of over and under-charging the WF-8965-AD-MBA Main Board Assembly will maximize your battery life with multi-stage charging and current monitoring in lead-Acid and lithium-ion profiles.
It installs easily with only two screws, three ac, and two DC wires. With no need to re-wire, installation is only 10 minutes! No additional wiring or hookup is required, and it accepts hi-pot testing. Customers also have the option for Reverse Polarity Detection that meets new RVIA & NEC requirements with audible alarm notification.
WF-8965-AD-MBA Main Board Assembly replaces the lower power converter section on any WF-8965 Series converter. WF-8965-AD-MBA Main Board Assembly easily installs with only two screws, three AC wires, and two DC wires.
The WFCO WF-8965-AD-MBA Main Board Assembly is a reliable 65 Amp power converter designed for RV electrical systems. Engineered to deliver consistent voltage regulation and efficient power distribution, it ensures optimal performance and protection for your RV’s electrical components. This main board assembly is an essential replacement part for maintaining the integrity and safety of your RV’s power system.
| Output Power |
1260 W |
|---|---|
| Input Voltage/Hz |
105-130 VAC, 60 Hz |
| Weight |
8 Lbs. |
| Dimensions |
7 1/16" W x 3 7/8" H x 9 1/2" D |
| Output Current |
65 A |
| Converter Type |
Three-Stage Converter Charger |
| Voltage Output |
Lead Acid – 13.2 – 14.4V DC Range, Lithium-Ion – 13.2 – 14.6 VDC, 13.6 – 14.6 VDC |
| Bulk Mode (Quick Charging Voltage) |
14.4V DC (quick charging voltage) |
| Absorption Mode (Nominal Voltage) |
13.6V DC (nominal voltage) |
| Float Mode (Trickle Charge Voltage) |
13.2V DC (trickle charge voltage) |
| Over Current |
Yes |
| Over Temperature |
Yes |
| Over Voltage |
Yes |
| Reverse Polarity |
Yes |
| Cooling System |
Yes |
| Mounting Plate Material |
Plastic |
| Mounting Plate Color |
Black, Brown |
| Certifications |
FCC |
